Super superb features include: strong penetration, good environmental adaptability, large label data storage capacity, reusable, strong security, etc. frequency features include: strong penetration, good environmental adaptability, large label data storage capacity, reusable, strong security, etc

Application Environment

UHF
Reader
Writer

Best choice for industrial applications

Excellent Reading Performance Anti-collision Algorithm 18000-6C Full Compatible Resist Bad Environment Strong Stability Low-Power Design

R1116-M

R1116-M

Die-cast aluminum+FR4
142 x 60.5 x 8 mm
902-928MHz FCC

865-868MHz ETSI
< -78 dBm
ISO 18000-6C
0 – 33dBm
> 400 tags/s
Supported
UART TTL Level
Output IO 3.3V TTL Level

R1116-M

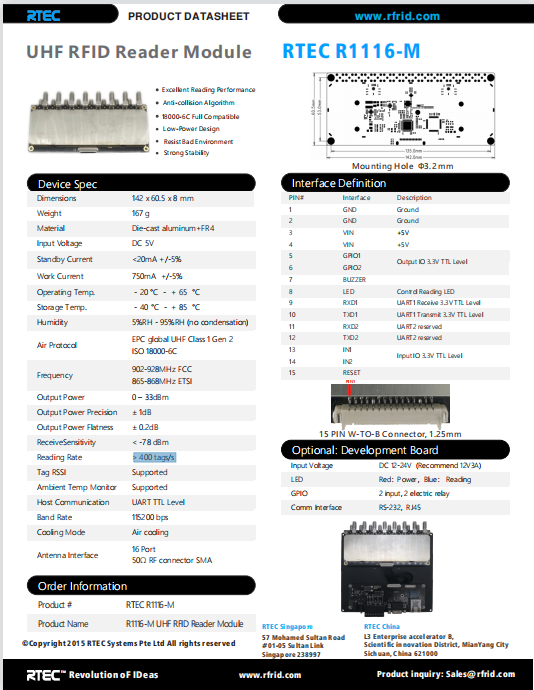

Download Datasheet
