RFID R1132-M

R1132-M

R1132-m is an UHF RFID reader and writer, which uses air-cooled heat dissipation and has low power consumption. It is made of aluminum + FR4, with fast peak speed of inventory tag and supports tag RSS. The reader and writer has the characteristics of small volume, long reading distance, fast identification speed and convenient installation.

Application Environment

Modular
Reader
Writer

Best choice for industrial applications

Excellent Reading Performance Anti-collision Algorithm 18000-6C Full Compatible Resist Bad Environment Strong Stability Low-Power Design

R1132-M

R1132-M

Die-cast aluminum+FR4
200 x 110 x 9 mm
902-928MHz FCC
865-868MHz ETSI
< -78 dBm
ISO 18000-6C
0 – 33dBm
> 400 tags/s
Supported
UART TTL Level

R1132-M

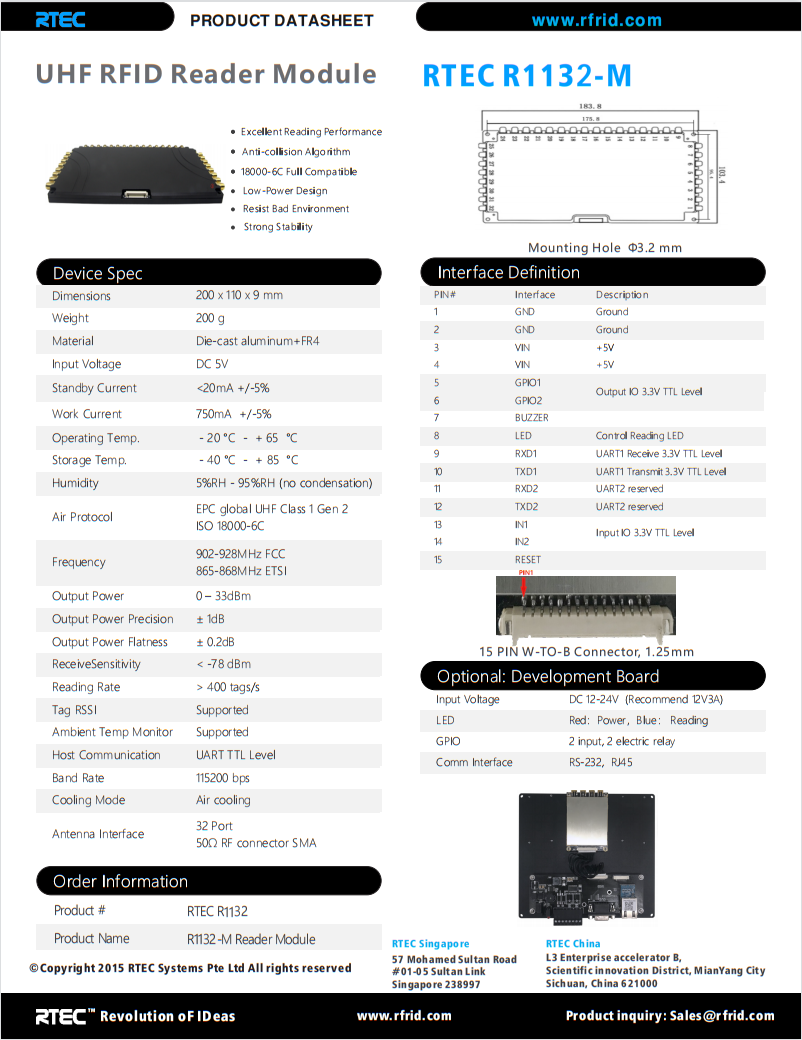

Download Datasheet
